| Model | Leguan 160 |
|---|---|
| Max. working height | 15.9 m |
| Max. platform height | 13.9 m |
| Max. outreach | 6.65 m |
| SWL for the entire engine area | 200 kg |
| Transport length | 4.94 m |
| Transport length without platform | 4.60 m |
| Transport height23” tyres | 2.02 m |
| Transport height20” tyres | 1.99m |
| with tracks | 2.01 m |
| Transport width 23” tyres | 1.30 m |
| Transport width 20” tyres | 1.25 m |
| with tracks | 1.28 m |
| Platform dimensions W x L | 1.30 m x 0.75 m |
| Rotation of basket | 90º (+/- 45º) |
| Slewing | 360º |
| Gradeability | 35% |

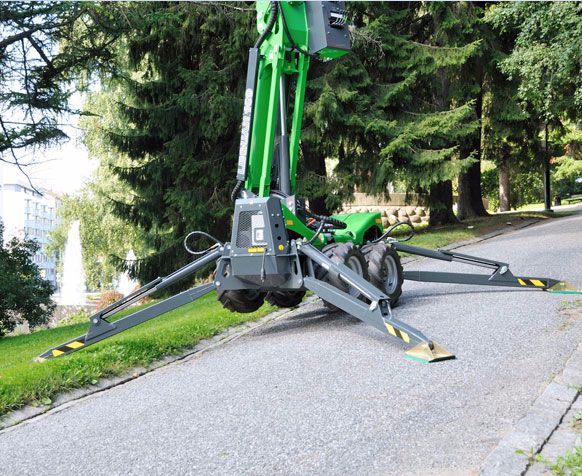

| Outrigger spread working | 3.29 x 3.26 |
| Weight | 2000 ~ 2300kg |
| Power source | Kubota 14 hv diesel
liquid cooled 230 V 2.2 kW |
| Drive system: hydrostatic | 4WD tracks |
| Drive speed | 1.5 km/h / 4.5 km/h |
| Start battery | 12 V / 43 Ah |
| Full time active platform load control | 200 kg |
